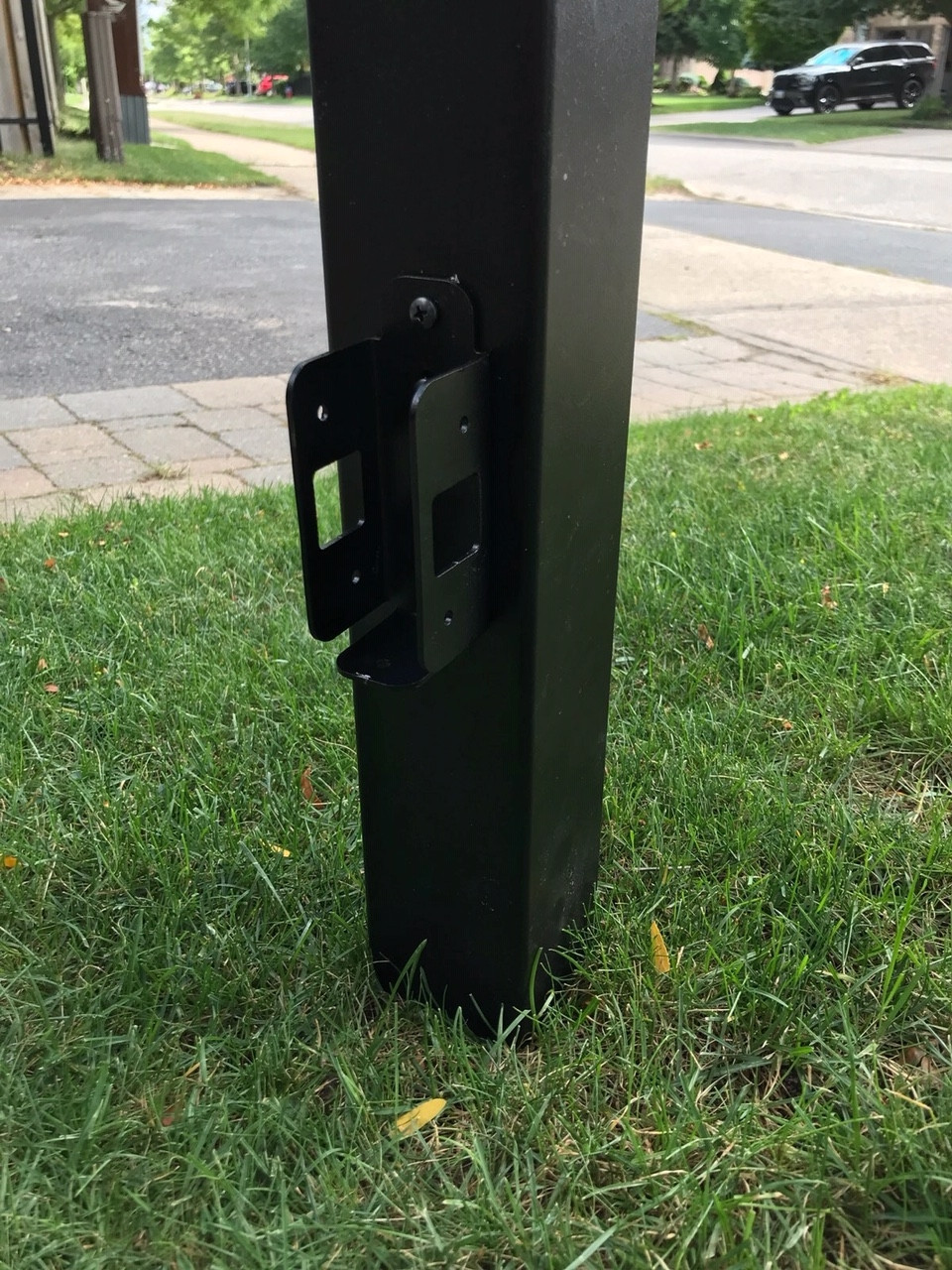

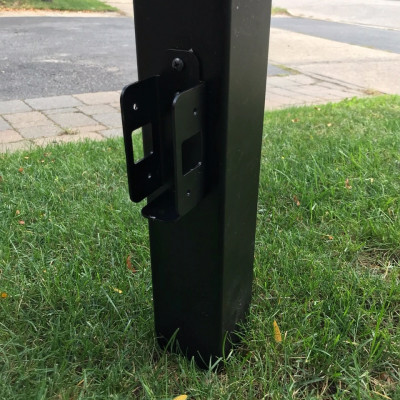

The Traditional Fence System seamlessly blends the strength and durability of aluminum with the timeless appeal of wood. With 3” square aluminum fence posts matched with standard 2x4 wood rails and 1x6 fence pickets, assembly is simple: attach the aluminum brackets to the posts using the provided hardware and slide in your 2x4 wood rails. From there, customize your desired traditional wood panel fence, be it a shadowbox, board-to-board, or board-on-board style—or a combination of these designs. This system, our most economical option, pairs aluminum posts with the warmth of wood.

Traditional Fence Styles

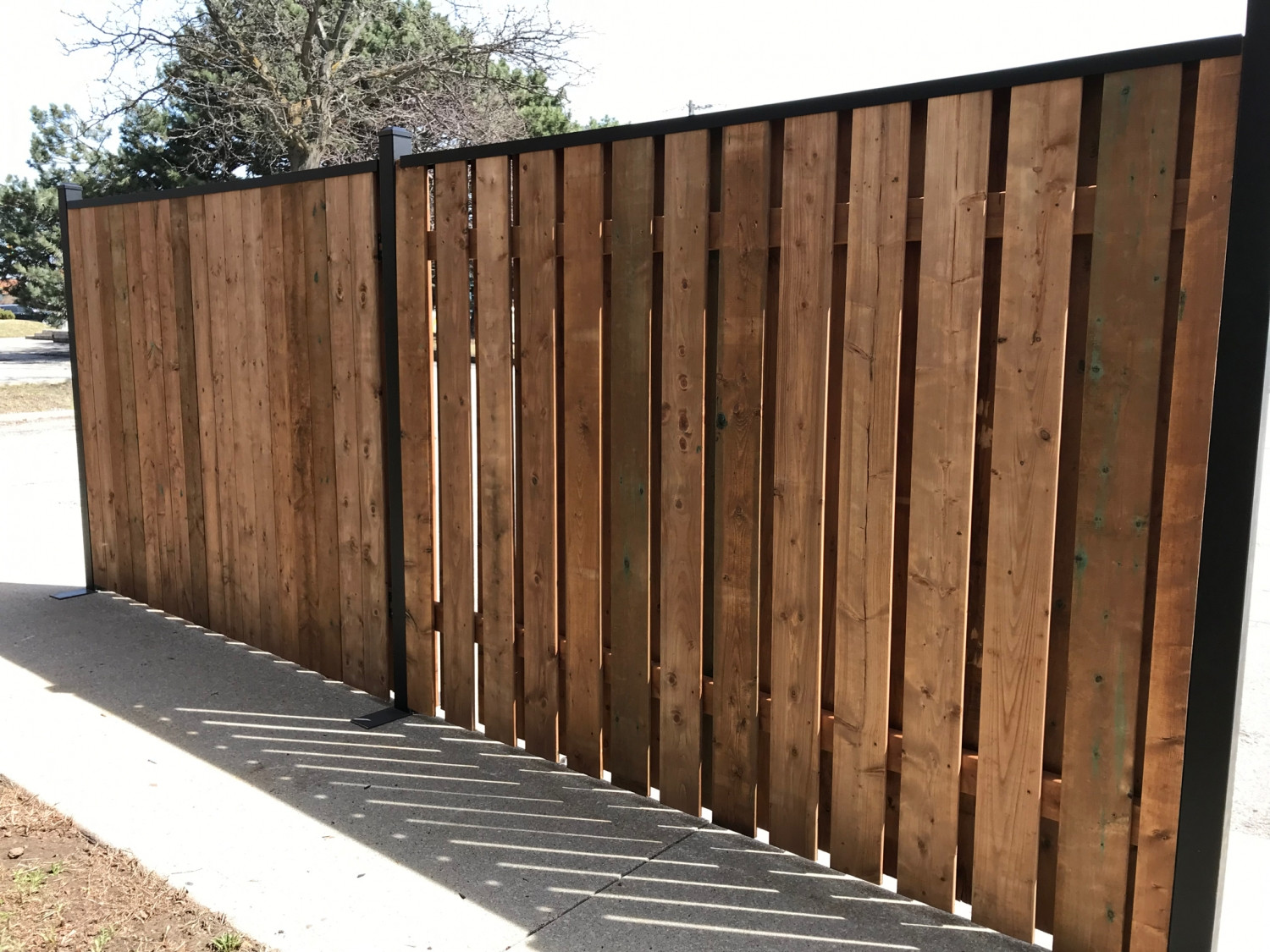

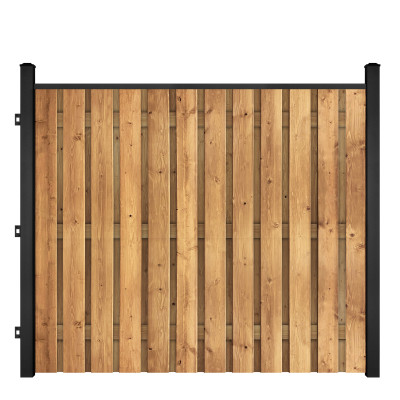

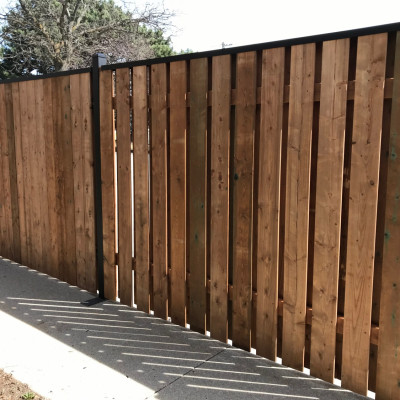

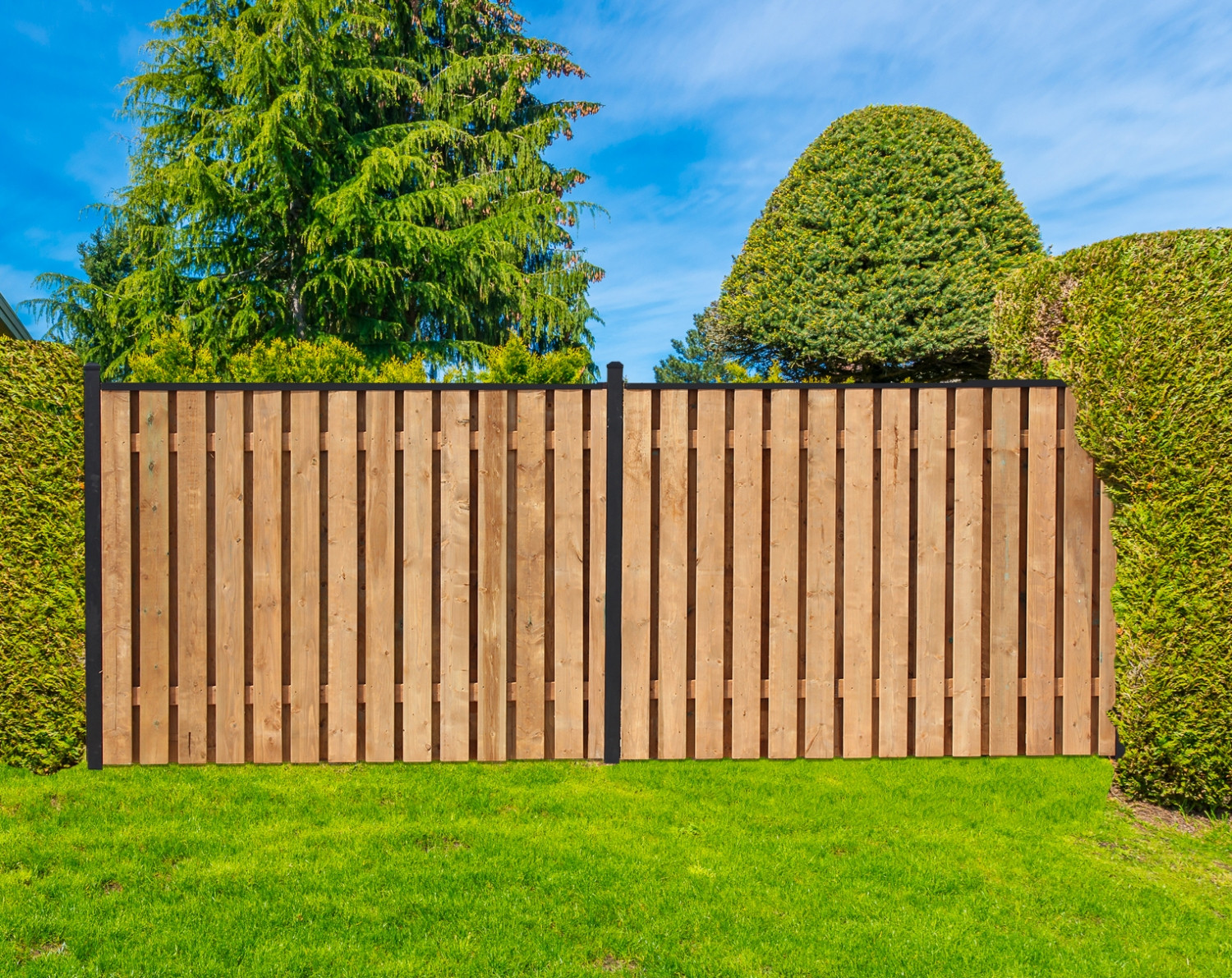

Shadow Box
This style of fence provides good privacy due to the overlapping of the pickets on each side of the fence. Aesthetically, this fence looks identical on both side and allows airflow and sunlight to the plants and grass adjacent to the fence. The optional cap rail covers the dog eared fence pickets and modernizes each fence section.

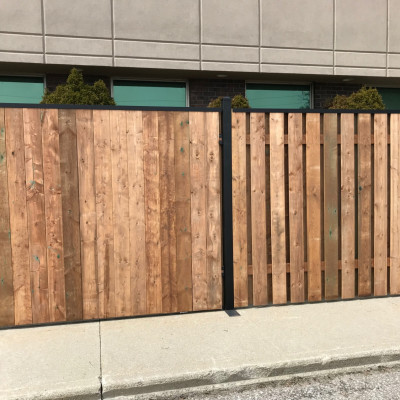

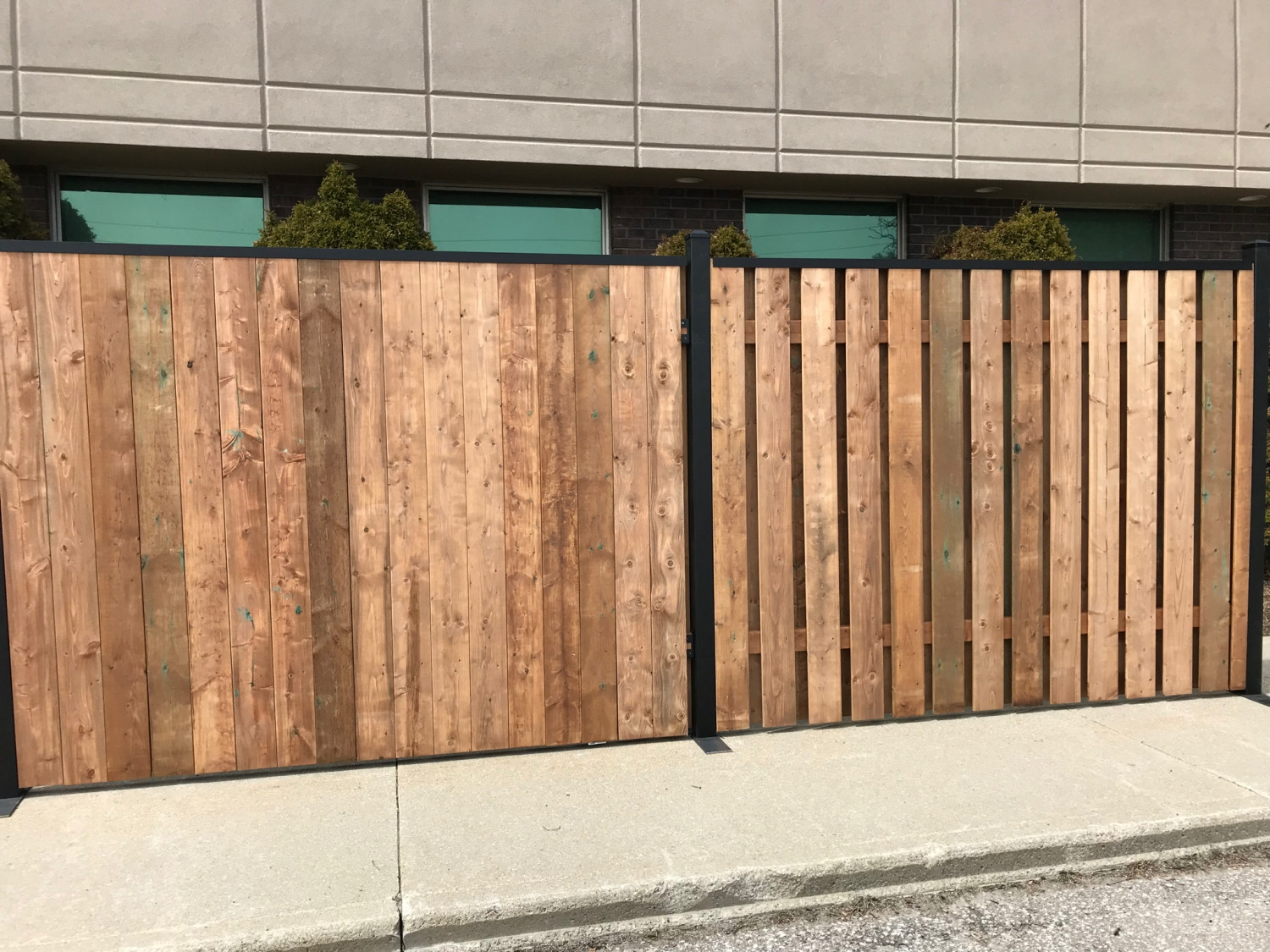

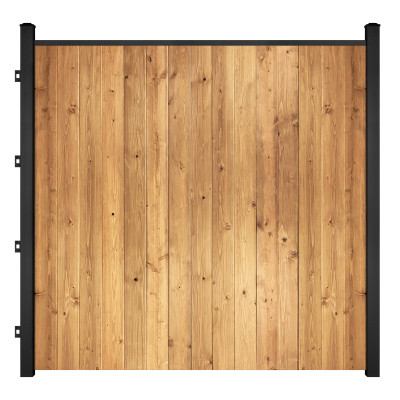

Side By Side
This style of fence provides very good privacy due to the side by side arrangement of the pickets. Please keep in mind once the pickets are fastened- the boards will shrink by 1/8in. each allowing minimal sunlight and airflow. Aesthetically, this fence style looks different on each side and would need to be rotated every other section to maintain a neighbor-friendly fence. This is the most economical fence style.

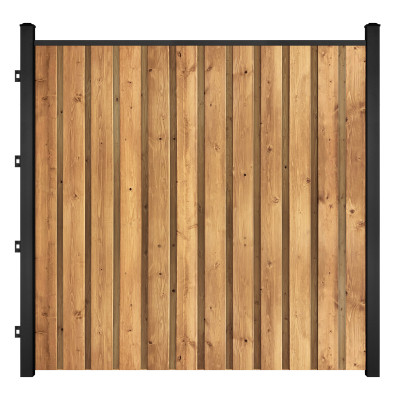

Board on Board
This style of fence provides excellent privacy due to the board on board arrangement of the pickets. Aesthetically, this fence style looks different on each side and would need to be rotated every section to maintain a neighbor-friendly fence. Airflow and light transmission is limited due to the solid arrangement of the pickets. The optional cap rail covers the dog eared fence pickets and modernizes each fence section.
Fence Height AVAILABLE IN 4 DIFFERENT HEIGHTS

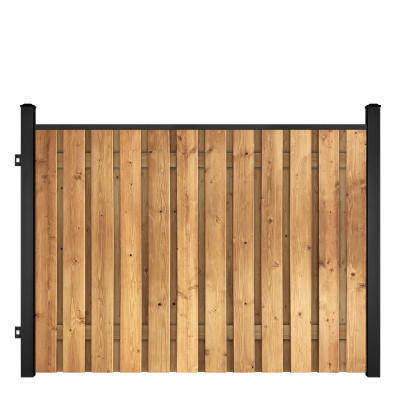

6ft. Tall Fence
This entry level fence style uses our Aluminum posts and brackets plus wood to create a Shadow Box appearance at the most popular height of 6ft. tall. Combining the longevity of Slipfence's aluminum posts and brackets with a wood pickets allows both air flow and sunlight while still maintaining privacy and security.
Shadowbox

Slipfence Parts Required per 8ft. Wide Section

  • 9ft. (SF2-PK309) or 10ft. (SF2-PK310) Post Kit (includes post cap)
  • 2 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 24pcs. of 1in. x 6in. x 6ft. fence pickets
    (actual 5/8in. x 5.5in. x 72in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 96pcs. galvanized nails or outdoor wood screws
Side By Side

Slipfence Parts Required per 8ft. Wide Section

  • 9ft. (SF2-PK309) or 10ft. (SF2-PK310) Post Kit (includes post cap)
  • 2 x SF2-TBK02 Traditional Brackets required per 8ft. wide section

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 17pcs. of 1in. x 6in. x 6ft. fence pickets
    (actual 5/8in. x 5.5in. x 72in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 68pcs. galvanized nails or outdoor wood screws
Board on Board

Slipfence Parts Required per 8ft. Wide Section

  • 9ft. (SF2-PK309) or 10ft. (SF2-PK310) Post Kit (includes post cap)
  • 2 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 23pcs. of 1in. x 6in. x 6ft. fence pickets
    (actual 5/8in. x 5.5in. x 72in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 92pcs. galvanized nails or outdoor wood screws
7ft. Tall Fence
The 7ft. tall fence style combines our Aluminum posts and brackets providing at least 25 years with peace of mind that your fence posts will not rot or decay and fall over. The 7ft. height provides more security and privacy while still allowing air flow and sunlight to pass through.
Shadowbox

Slipfence Parts Required per 8ft. Wide Section

  • 10ft. (SF2-PK310) or 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 24pcs. of 1in. x 6in. x 7ft. fence pickets
    (actual 5/8in. x 5.5in. x 84in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 144pcs. galvanized nails or outdoor wood screws
Side By Side

Slipfence Parts Required per 8ft. Wide Section

  • 10ft. (SF2-PK310) or 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3 x SF2-TBK02 Traditional Brackets required per 8ft. wide section

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 17pcs. of 1in. x 6in. x 7ft. fence pickets
    (actual 5/8in. x 5.5in. x 84in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 102pcs. galvanized nails or outdoor wood screws
Board on Board

Slipfence Parts Required per 8ft. Wide Section

  • 10ft. (SF2-PK310) or 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 23pcs. of 1in. x 6in. x 7ft. fence pickets
    (actual 5/8in. x 5.5in. x 84in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 138pcs. galvanized nails or outdoor wood screws

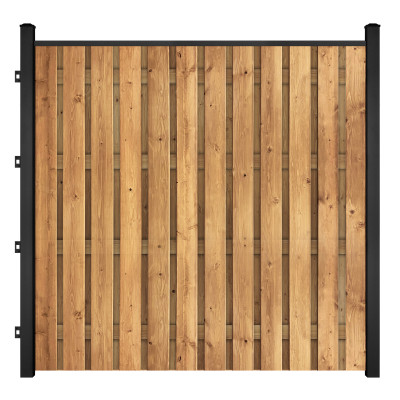

8ft. Tall Fence
The 8ft. tall fence style combines our Aluminum posts and brackets providing at least 25 years with peace of mind that your fence posts will not rot or decay and fall over. The 8ft. height provides maximum security and privacy while still allowing air flow and sunlight to pass through.
Shadowbox

Slipfence Parts Required per 8ft. Wide Section

  • 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3pc. of SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 24pcs. of 1in. x 6in. x 8ft. fence pickets
    (actual 5/8in. x 5.5in. x 96in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 144pcs. galvanized nails or outdoor wood screws
Side By Side

Slipfence Parts Required per 8ft. Wide Section

  • 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3 x SF2-TBK02 Traditional Brackets required per 8ft. wide section

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 17pcs. of 1in. x 6in. x 8ft. fence pickets
    (actual 5/8in. x 5.5in. x 96in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 102pcs. galvanized nails or outdoor wood screws
Board on Board

Slipfence Parts Required per 8ft. Wide Section

  • 12ft. (SF2-PK312) Post Kit (includes post cap)
  • 3 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 23pcs. of 1in. x 6in. x 8ft. fence pickets
    (actual 5/8in. x 5.5in. x 96in.)
  • 3pcs. of 2in. x 4in. x 8ft.
  • 138pcs. galvanized nails or outdoor wood screws

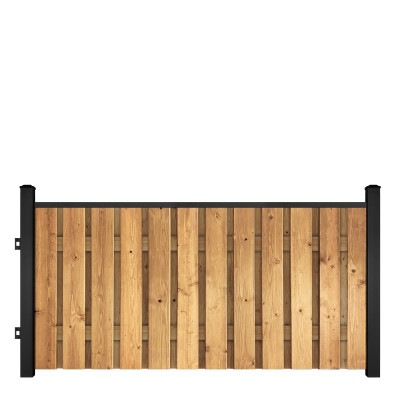

4ft. Tall Fence
The 4ft. tall fence style combines our Aluminum posts and brackets providing at least 25 years with peace of mind that your fence posts will not rot or decay and fall over. The 4ft. height allows you to continue the same fence style into your front yard. It is a neighbor friendly height and it has the same appearance on both sides.
Shadowbox

Slipfence Parts Required per 8ft. Wide Section

  • 6ft. (SF2-PK306) or 8ft. (SF2-PK308) Post Kit (includes post cap)
  • 2pc. of SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 24pcs. of 1in. x 6in. x 4ft. fence pickets
    (actual 5/8in. x 5.5in. x 48in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 96pcs. galvanized nails or outdoor wood screws
Side By Side

Slipfence Parts Required per 8ft. Wide Section

  • 6ft. (SF2-PK306) or 8ft. (SF2-PK308) Post Kit (includes post cap)
  • 2 x SF2-TBK02 Traditional Brackets required per 8ft. wide section

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 17pcs. of 1in. x 6in. x 4ft. fence pickets
    (actual 5/8in. x 5.5in. x 48in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 68pcs. galvanized nails or outdoor wood screws
Board on Board

Slipfence Parts Required per 8ft. Wide Section

  • 6ft. (SF2-PK306) or 8ft. (SF2-PK308) Post Kit (includes post cap)
  • 2 x SF2-TBK02 Traditional Brackets required per 8ft. wide section
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood and Hardware Needed per 8ft. Section*
* Sold Seperately

  • 23pcs. of 1in. x 6in. x 4ft. fence pickets
    (actual 5/8in. x 5.5in. x 48in.)
  • 2pcs. of 2in. x 4in. x 8ft.
  • 92pcs. galvanized nails or outdoor wood screws

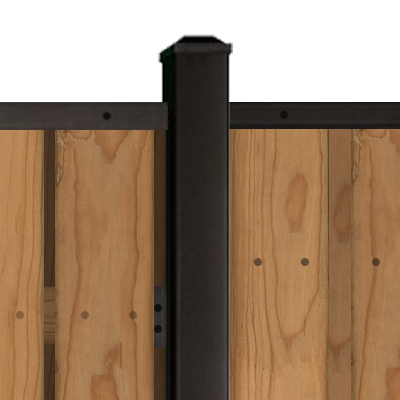

Cap Rail
Available for use with Shadow Box and Board on Board Fence styles only.

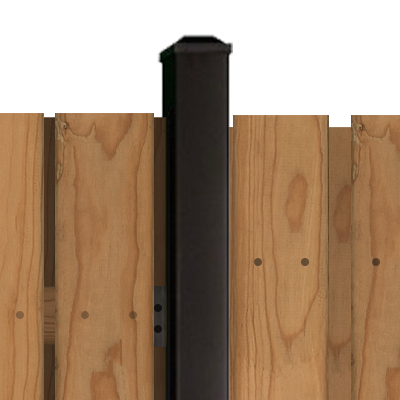

Cap Rail
Shadowbox
One Cap rail 92.5: long x 3in. wide x 1.5in. side wall to fit right on top of the wood pickets of each finished Traditional Shadow Box fence panel for a beautiful, finished look. Pre-drill 2 holes at either end and fasten to fence pickets.
Board on Board
One Cap rail 92.5: long x 3in. wide x 1.5in. side wall to fit right on top of the wood pickets of each finished Traditional Board on Board fence panel for a beautiful, finished look. Fasten 2 small pieces of 2in x 4in. x 6in. long to both ends of top of completed fence panel. Pre-drill 2 holes in side wall of cap rail at either end and fasten to fence pickets.
No Cap Rail
No Cap Rails. Cap rails do not provide any structural support to the fence, but they do make the fence look more polished.
