The Slipfence Gate Kit (SF2-GK100) is a customizable gate frame designed to seamlessly integrate with your existing fence panels, ensuring a cohesive and attractive appearance. This kit includes six robust steel brackets that form a sturdy wood frame, which can be cladded with your choice of board finishes to match the style of your fence. We recommend a gate wheel to be used with any gate over 48 inches wide.
Key Features:
  1. Customizable Design: Allows for the addition of boards that match your fence panels, providing a uniform look.
  2. Durable Construction: Made from high-quality steel brackets to ensure long-lasting performance and stability.
  3. Self-Closing Hinges: Equipped with self-closing hinges for added convenience and security.
  4. Lockable Thumb Latch: Features a lockable thumb latch to help secure your pool area or property, enhancing safety and peace of mind.
The Slipfence Gate Kit is an ideal choice for homeowners looking to create a secure, stylish, and functional gate that complements their fence system.
Gate Height AVAILABLE IN 4 DIFFERENT HEIGHTS
Vertical 6ft. Tall Gate up to 60in. Wide

Slipfence Parts Required per 60in. Wide Gate

  • 9ft. (SF2-PK309) or 10ft. (SF2-PK310) Post Kit (includes post cap)
  • SF2-GK100 Gate Kit
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood Needed per 60in. Wide Gate *Sold Seperately

  • 16 pcs. of 1in. x 6in. x 6ft. fence pickets
    (actual 5/8in. x 5.5in. x 6ft.)
  • 5 pcs. of 2in. x 4in. x 8ft. lumber
  • 64 pcs. galvanized nails or outdoor wood screws
  • Gate wheel required
Vertical 7ft. Tall Gate up to 48in. Wide

Slipfence Parts Required per 48in. Wide Gate

  • 10ft. (SF2-PK310) or 12ft. (SF2-PK312) Post Kit (includes post cap)
  • SF2-GK100 Gate Kit
  • TSF-DDHinge Extra Hinge Kit
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood Needed per 48in. Wide Gate *Sold Seperately

  • 13 pcs. of 1in. x 6in. x 8ft. fence pickets
    (actual 5/8in. x 5.5in. x 7ft. cut to size)
  • 5 pcs. of 2in. x 4in. x 8ft. lumber
  • 52 pcs. galvanized nails or outdoor wood screws
Vertical 8ft. Tall Gate up to 48in. Wide

Slipfence Parts Required per 48in. Wide Gate

  • 12ft. (SF2-PK312) Post Kit (includes post cap)
  • SF2-GK100 Gate Kit
  • TSF-DDHinge Extra Hinge Kit
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood Needed per 48in. Wide Gate *Sold Seperately

  • 13 pcs. of 1in. x 6in. x 8ft. fence pickets
    (actual 5/8in. x 5.5in. x 8ft.)
  • 5 pcs. of 2in. x 4in. x 8ft. lumber
  • 52 pcs. galvanized nails or outdoor wood screws
Vertical 4ft. Tall Gate up to 48in. Wide

Slipfence Parts Required per 48in. Wide Gate

  • 6ft. (SF2-PK306) or 8ft. (SF2-PK308) Post Kit (includes post cap)
  • SF2-GK100 Gate Kit
  • SF2-VCR93 Vertical Cap Rail (Optional)

Wood Needed per 48in. Wide Gate *Sold Seperately

  • 13 pcs. of 1in. x 6in. x 6ft. fence pickets
    (actual 5/8in. x 5.5in. x 4ft. cut to size)
  • 4 pcs. of 2in. x 4in. x 8ft. lumber
  • 52 pcs. galvanized nails or outdoor wood screws

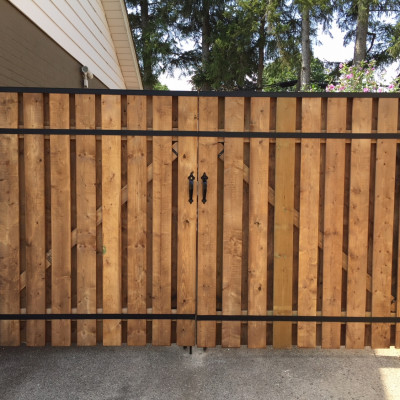

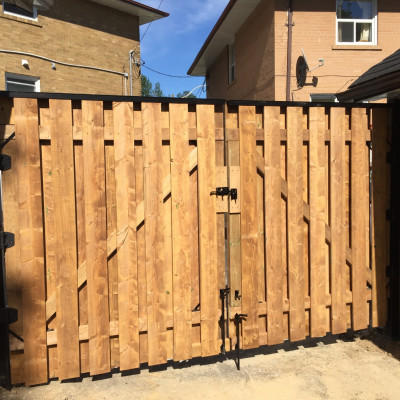

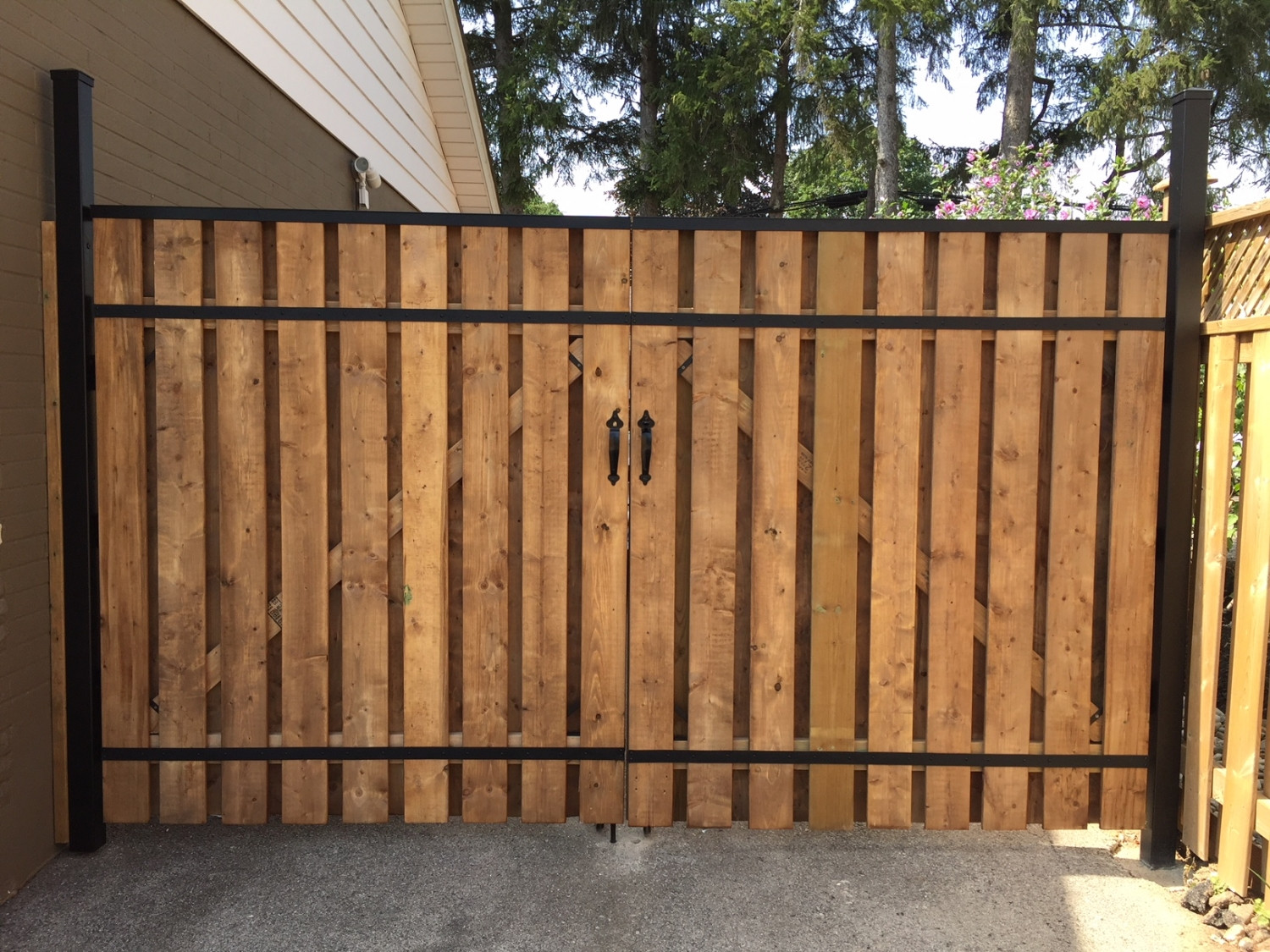

Double Gates

Create a gate for a trailer entrance or a wide entry by combining two Gates to create a double gate. We strongly recommend a gate wheel (sold separately) on both gates over 48 inches. A gate pin (sold separately) is also recommended.

To create a DOUBLE GATE system you will require 2 x SF2-GK100.

The maximum width in a two gate build would be 10ft. Take a measurement between the 2 gate posts (maximum width is 120in. / 10ft.). From that measurement, subtract 2.25 inches and divide by 2.

For eaxmple a 120in. gap minus 2.25 and then divided by 2 would be 58.875in. This is the width of each gate that you need to build.

Each top and bottom wood rail (2in. x 4in.) needs to be cut 58.875in. for each gate frame you are building. This will allow .75 inches for each hinge and .75 inches between the 2 gates.

Add your fence pickets. deck boards to line up with your fence sections. Add a gate wheel and gate pin (sold separately) to the gates to make them easier to operate.
